Transmission Conductor

Conductors

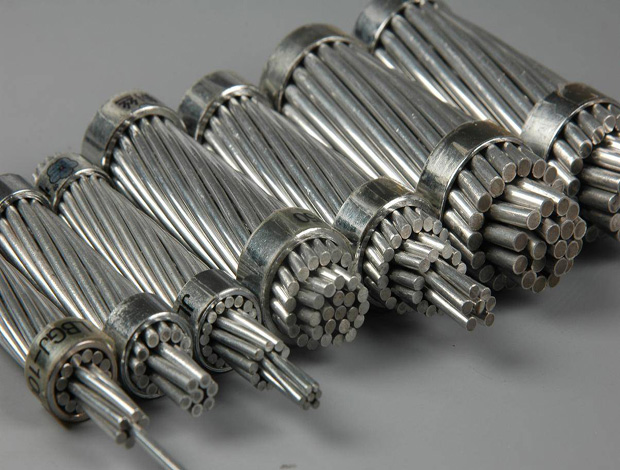

ACSR conductors are being used on transmission line networks for all climatic regions as per GOST 15150. The conductors are being manufactured as per GOST 839-80 requirements. ACSR is consisting of steel and aluminum wires. The installation of the conductor has to be done as per PUE requirements. Maximum continous permissible temperature of the conductor should not exceed 90 C.

Inquiry


ACSR Conductors according to GOST 839-80


# Section Aluminum part Steel part Min. Breaking Strength
Number of wires Nom. wire diameter Number of wires Nom. wire diameter
1 16/2.7 6 1.85 mm. 1 1.85 mm. 6,220 N.
2 25/4.2 6 2.30 mm. 1 2.30 mm. 9,296 N.
3 35/6.2 6 2.80 mm. 1 2.80 mm. 13,524 N.
4 50/8.0 6 3.20 mm. 1 3.20 mm. 17,112 N.
5 70/11 6 3.80 mm. 1 3.80 mm. 24,130 N.
6 70/72 18 2,20 mm. 19 2.20 mm. 96,862 N.
7 95/16 6 4.50 mm. 1 4.50 mm. 33,369 N.
8 120/19 26 2.40 mm. 7 1.85 mm. 41,521 N.
9 120/27 30 2.20 mm. 7 2.20 mm. 49,465 N.
10 150/19 24 2.80 mm. 7 1.85 mm. 46,307 N.
11 150/24 26 2.70 mm. 7 2.10 mm. 52,279 N.
12 150/34 30 2.50 mm. 7 2.50 mm. 62,643 N.
13 185/24 24 3.15 mm. 7 2.10 mm. 58,075 N.
14 185/29 26 2.98 mm. 7 2.30 mm. 62,055 N.
15 185/43 30 2.80 mm. 7 2.80 mm. 77,767 N.
16 205/27.0 24 3.30 mm. 7 2.20 mm. 63,740 N.
17 240/32 24 3.60 mm. 7 2.40 mm. 75,050 N.
18 240/39 26 3.40 mm. 7 2.65 mm. 80,895 N.
19 240/56 30 3.20 mm. 7 3.20 mm. 98,253 N.
20 300/39 24 4.00 mm. 7 2.65 mm. 90,574 N.
21 300/48 26 3.80 mm. 7 2.95 mm. 100,623 N.
22 300/204 54 2.65 mm. 37 2.65 mm. 284,579 N.
23 330/43.0 54 2.80 mm. 7 2.80 mm. 103,784 N.
24 400/18 42 3.40 mm. 7 1.85 mm. 85,600 N.
25 400/51 54 3.05 mm. 7 3.05 mm. 120,481 N.
26 400/64 26 4.34 mm. 7 3.40 mm. 129,183 N.
27 400/93 30 4.15 mm. 19 2.50 mm. 173,715 N.
28 500/27 76 2.84 mm. 7 2.20 mm. 112,188 N.
29 500/64 54 3.40 mm. 7 3.40 mm. 148,257 N.
30 600/72 54 3.70 mm. 19 2.20 mm. 183,835 N.
