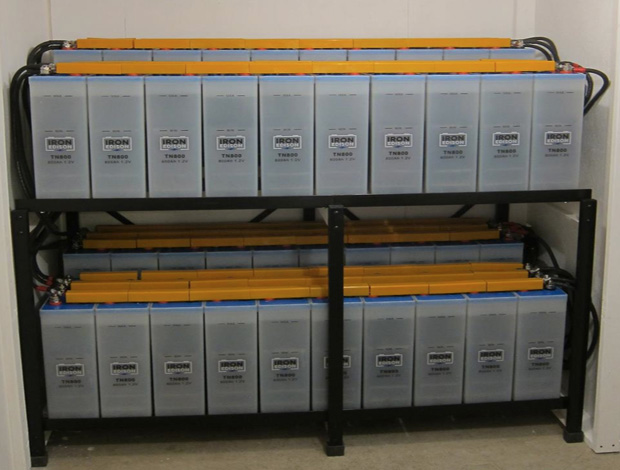

Battery Racks
Battery Racks are available in standard 1-tier, 2-tier, horizontal, cladded rack or tray type for your requirements. In case of special requirements, we are ready to provide you with the solution for specific seismic locations.
Main Features:
- Available for all types of batteries
- Acid proof protection
- Light weight but high strength and reliable performance
- Small shipping dimension
- Easy assembling and dismantling
- Customization available
OPzS Batteries
OPzS battereis have long life span, durability under cyclic use as well as low maintenance requirements, providing cost effective energy solution. The robust construction and high quality raw material with optimum design as per international standards, enhance its capacity and performance.
Main Features:
- Cell capacity range from 100 up to 3000 Ah
- Batteries available in 2V cells and 6V and 12V monoblocks
- According to DIN 40736-1 / 2, DIN 40737-3 and IEC 60896-11 standards
- Possible delivery with liquid or dry charged
- Transparent and calibrated case from SAN plastic material
- Insulated Terminal
Type |
Capacity (Ah) C10 V/Cell (1.80 Vpc at 20οC) |
Maximum cell dimensions (mm) |
Weight (kg) |
a |
b |
h1 |
h2 |
e |
3 OPzS 150 |
115 |
103 |
206 |
355 |
380 |
- |
13.8 |
2 OPzS 100 |
171 |
103 |
206 |
355 |
380 |
- |
15.7 |
4 OPzS 200 |
215 |
103 |
206 |
355 |
380 |
- |
17.5 |
5 OPzS 250 |
270 |
124 |
206 |
355 |
380 |
- |
21.4 |
6 OPzS 300 |
323 |
145 |
206 |
355 |
380 |
- |
25.7 |
5 OPzS 350 |
387 |
124 |
206 |
471 |
496 |
- |
28.4 |
6 OPzS 420 |
465 |
145 |
206 |
471 |
496 |
- |
33.5 |
7 OPzS 490 |
542 |
166 |
206 |
471 |
496 |
- |
38.6 |
5 OPzS 500 |
589 |
145 |
206 |
646 |
671 |
- |
42.0 |
6 OPzS 600 |
656 |
145 |
206 |
646 |
671 |
- |
45.8 |
7 OPzS 700 |
811 |
191 |
210 |
646 |
671 |
80 |
60.0 |
8 OPzS 800 |
875 |
191 |
210 |
646 |
671 |
80 |
63.8 |
9 OPzS 900 |
1031 |
233 |
210 |
646 |
671 |
110 |
73.0 |
10 OPzS 1000 |
1095 |
233 |
210 |
646 |
671 |
110 |
78.2 |
12 OPzS 1200 |
1312 |
275 |
210 |
646 |
671 |
140 |
91.3 |
11 OPzS 1400 |
1581 |
275 |
210 |
796 |
821 |
140 |
110.5 |
12 OPzS 1500 |
1669 |
275 |
210 |
796 |
821 |
140 |
115.1 |
14 OPzS 1700 |
2021 |
397 |
212 |
772 |
797 |
2x110 |
143.3 |
15 OPzS 1875 |
2136 |
397 |
212 |
772 |
797 |
2x110 |
148.9 |
16 OPzS 2000 |
2227 |
397 |
212 |
772 |
797 |
2x110 |
154.5 |
18 OPzS 2250 |
2574 |
487 |
212 |
772 |
797 |
3x110 |
184.0 |
20 OPzS 2500 |
2791 |
487 |
212 |
772 |
797 |
3x110 |
201.0 |
24 OPzS 3000 |
3343 |
576 |
212 |
772 |
797 |
3x140 |
230.0 |
OPzV
OPzS battereis have long life span, durability under cyclic use as well as low maintenance requirements, providing cost effective energy solution. The optimum design robust construction and the state of the art manufacturing process make OPzV batteries an ideal solution for high demanding applications such as renewable energy and telecom systems.
Main Features:
- Cell capacity range from 100 up to 3000 Ah
- Batteries available in 2V cells and 6V and 12V monoblocks
- According to DIN 40736-1 / 2, DIN 40737-3 and IEC 60896-11 standards
- Tubular positive plate made of Lead, Calcium and Tin
- Negative plate made from Lead, Calcium and Tin
- Gel electrolyte
- Plastic case made from polymer plastic ABS
Type |
Capacity (Ah) C10 V/Cell (1.80 Vpc at 20οC) |
Maximum cell dimensions (mm) |
Weight (kg) |
a |
b |
h1 |
h2 |
e |
4 OPzV 200 |
213 |
103 |
206 |
354 |
378 |
- |
19.5 |
5 OPzV 250 |
267 |
124 |
206 |
354 |
378 |
- |
23.5 |
6 OPzV 300 |
319 |
145 |
206 |
354 |
378 |
- |
28.0 |
5 OPzV 350 |
383 |
124 |
206 |
471 |
495 |
- |
31.0 |
6 OPzV 420 |
453 |
145 |
206 |
471 |
495 |
- |
36.5 |
7 OPzV 490 |
520 |
166 |
206 |
471 |
495 |
- |
42.0 |
6 OPzV 600 |
654 |
145 |
206 |
643 |
667 |
- |
50.0 |
8 OPzV 800 |
891 |
191 |
210 |
644 |
668 |
80 |
68.0 |
10 OPzV 1000 |
1105 |
233 |
210 |
646 |
670 |
110 |
82.0 |
12 OPzV 1200 |
1340 |
275 |
210 |
645 |
669 |
140 |
97.0 |
12 OPzV 1500 |
1611 |
275 |
210 |
796 |
820 |
140 |
120.0 |
16 OPzV 2000 |
2148 |
399 |
214 |
771 |
795 |
2x110 |
165.0 |
20 OPzV 2500 |
2687 |
487 |
212 |
769 |
793 |
3x110 |
200.0 |
24 OPzV 3000 |
3326 |
576 |
212 |
769 |
793 |
3x140 |
240.0 |
Do you have specific requirements? Just contact us and we will provide you with the solution.
